1710 Series
Quarter-turn Worm Gear Operators with
Spline for Electrical & Manual Operations
Range:
480 Nm to 146400 Nm
354 Ft-lbs to 107979 Ft-Lbf
Product Gallery

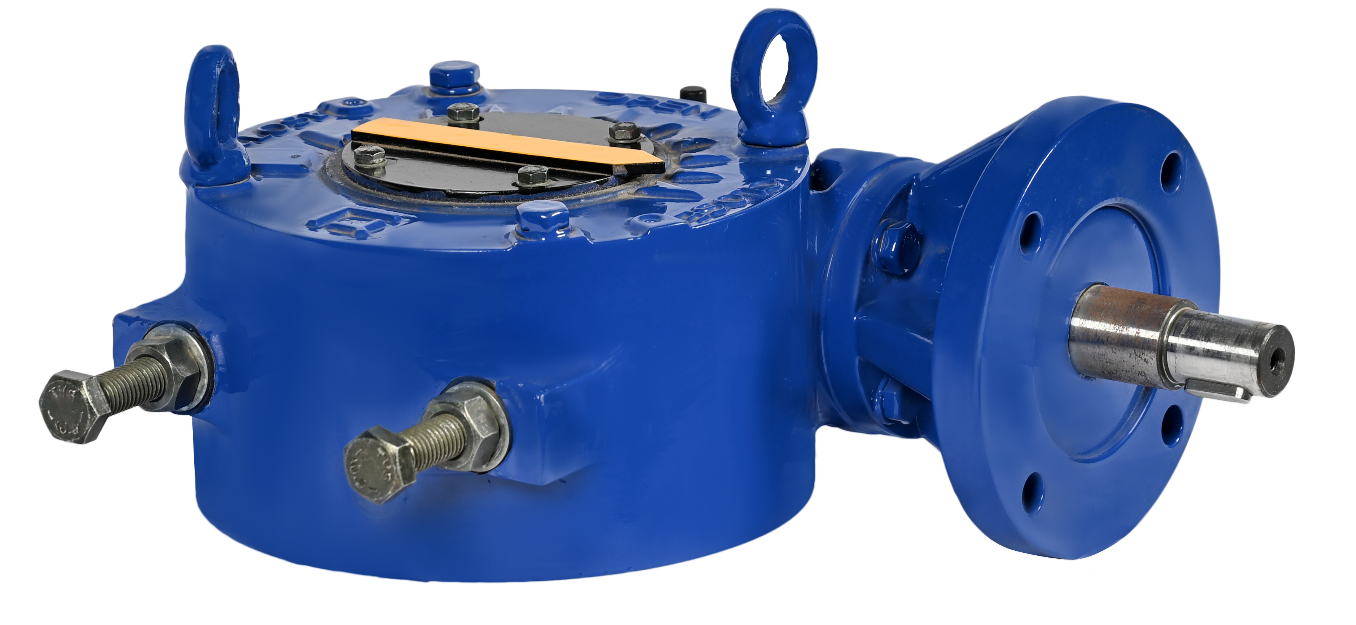

1710 Series for Electrical operation

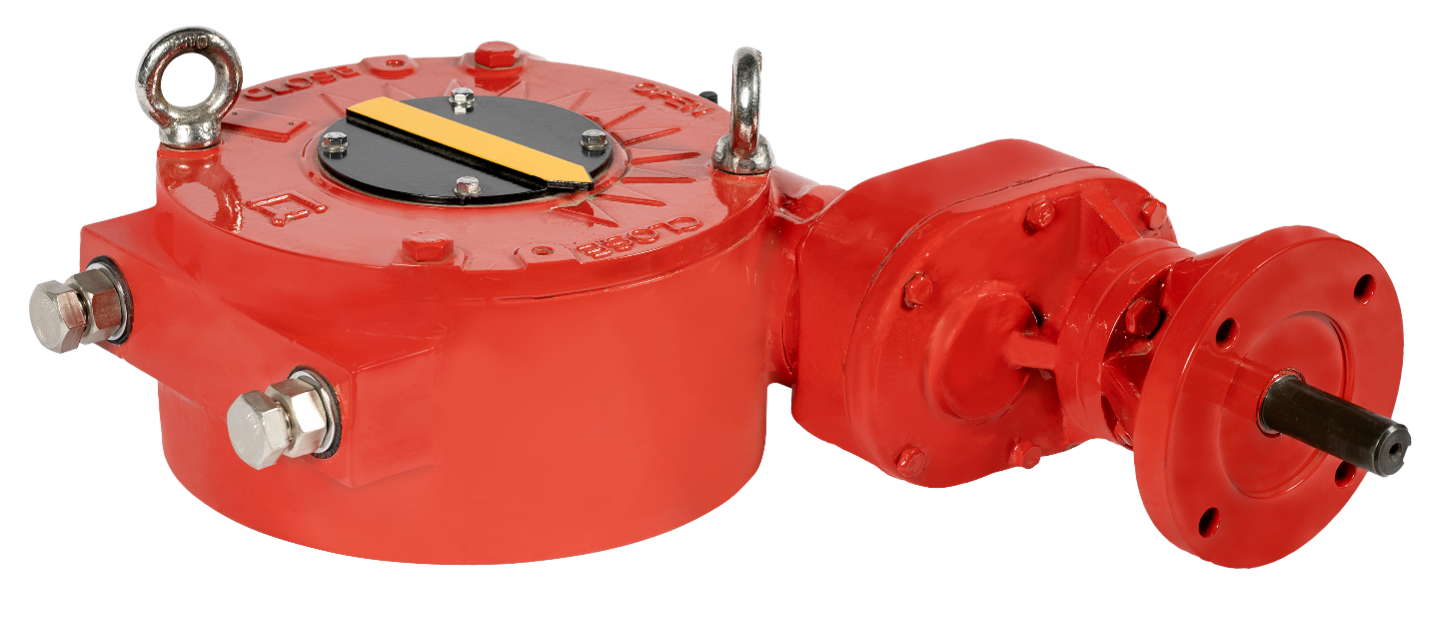

1710 Series with Reduction for Electrical operation

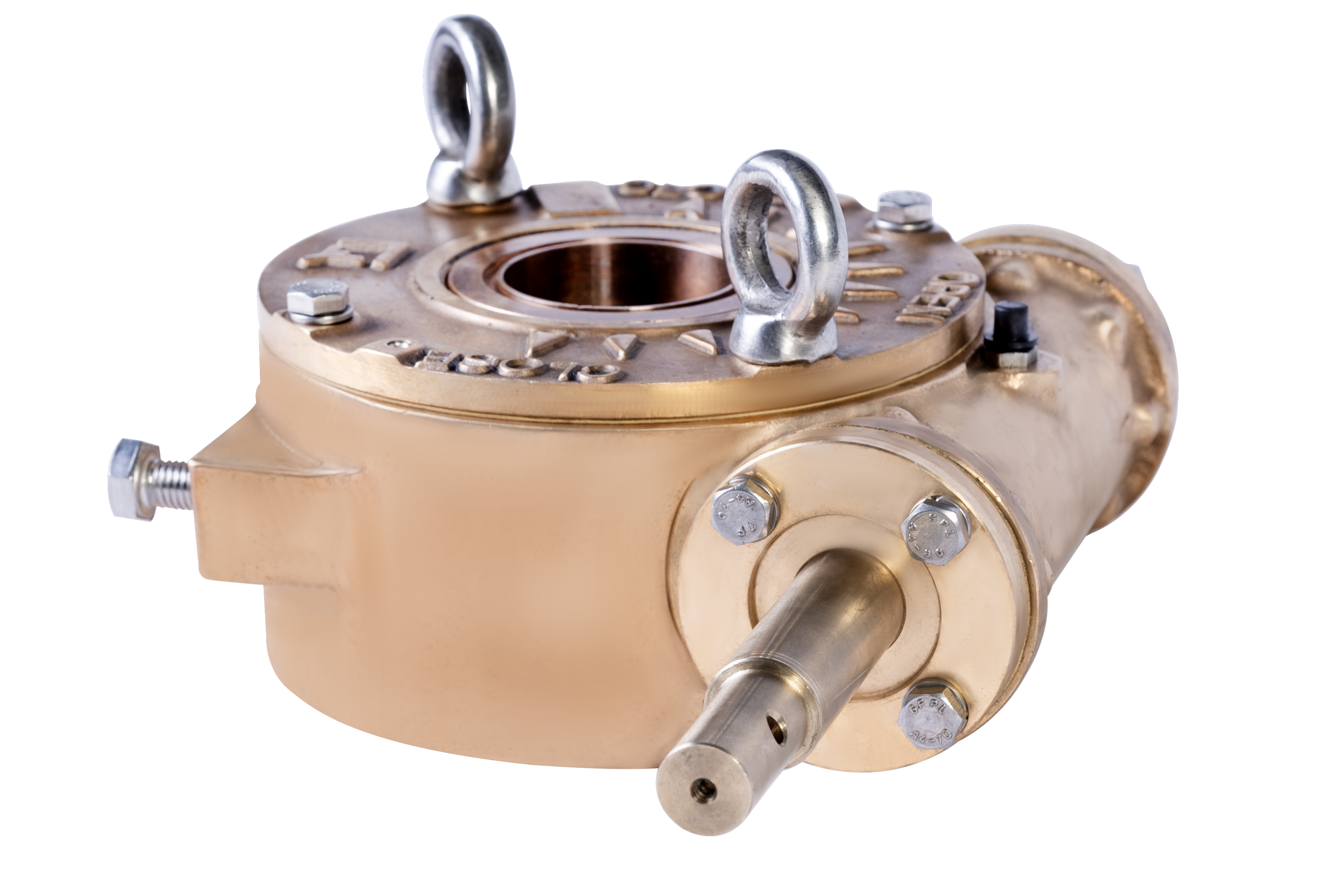

1710 Series for Manual operation in special material
Description
Q-Tork 1710 series Spline Quarter-turn Worm Gear Operators are designed for Electrical & Manual operation
Application
1710 series Spline Worm Gear Operators are suitable for Ball, Butterfly & Plug Valve
Key Features
- Splined Bush provides accurate positioning - valve stem & worm wheel
- Option of multiple gear ratios
- Higher M. A. for better performance
- Manual ⇌ Electrical interchangeability
- Submersibility to IP-67 as standard
- Stroke: 0 to 90° (± 5°) adjustable
- Critical components are heat treated for endurance life
- Reduced frictional losses - worm wheel & Casing
- High performance TRB's and DGBB's
- Buna "N" 'O' ring
- Temperature range -30°C to +120°C
- Environmental friendly high performance grease
Optional Features
- MOC: Carbon Steel, Stainless Steel, LCC, LCB
- Chain Wheel operation
- Locking arrangement
- Stainless Steel: Input shaft
- Worm Wheel: Al Bronze
