519 Series
Multi-turn Bevel Gear Operators
Range:
220 Nm to 13000 Nm
162 Ft-lbs to 9588 Ft-Lbf
Product Gallery

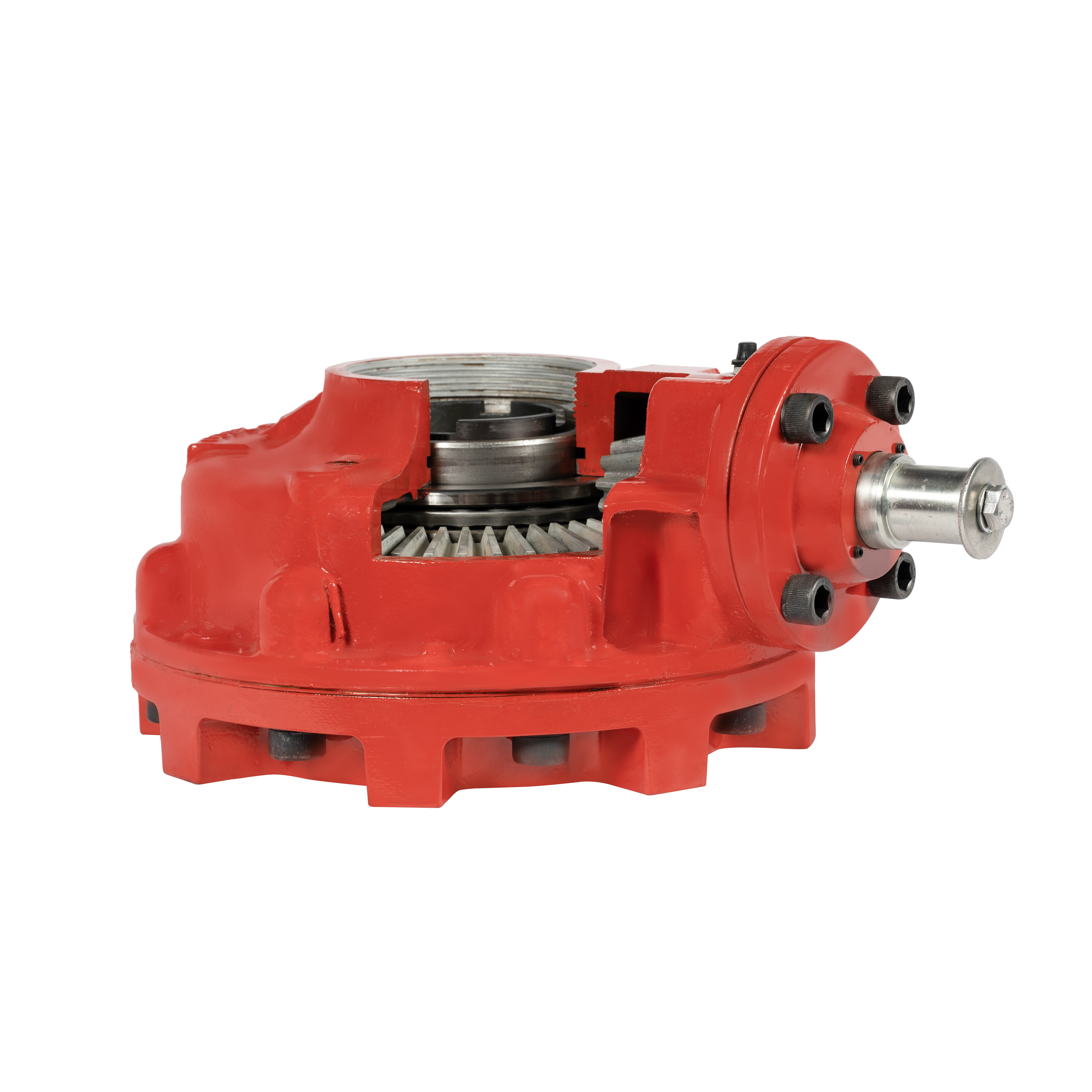

519 Series for Manual operation

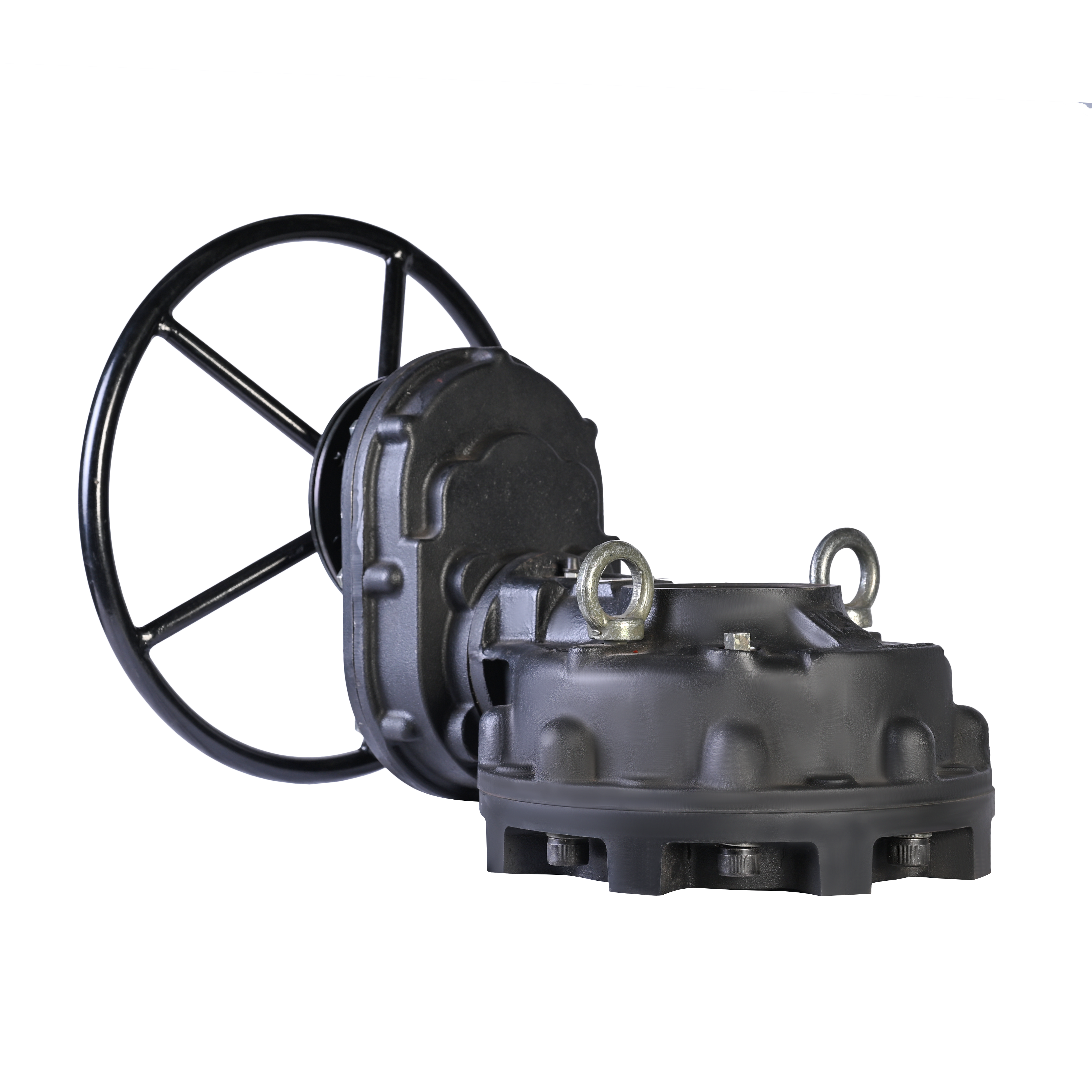

519 Series for Manual operation with Reduction

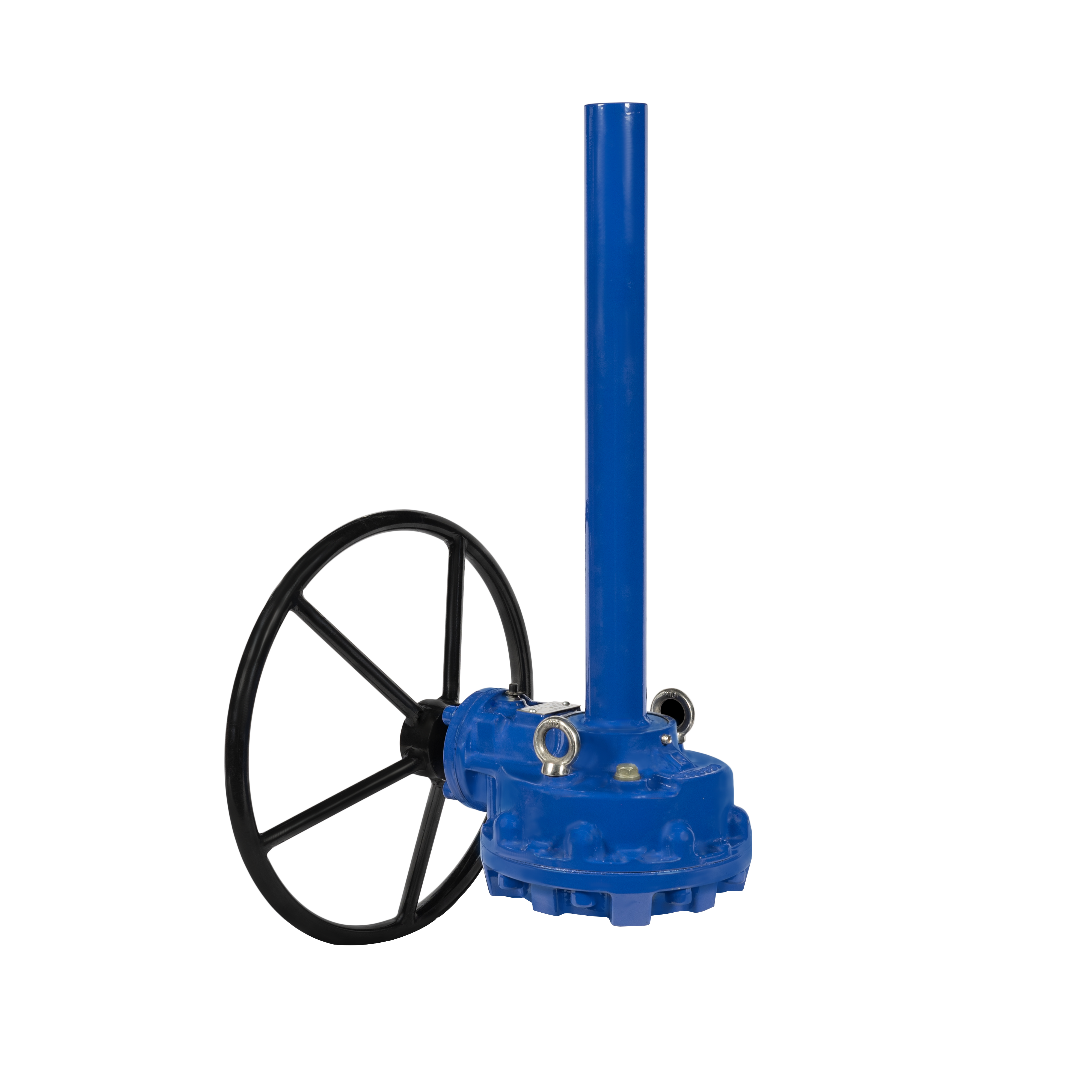

519 Series with Stem protection
Description
Q-Tork 519 series bevel gear operators are suitable for manual as well as motorized operation
Application
519 Series operator are multi-turn bevel gear boxes are used in operation of Gate Valve, Globe Valve, Sluice Valve and penstock Valve
Key Features
- Ductile Iron - Housing, Base and End cap
- Alloy Steel - Gear and Pinion
- All critical components are heat treated to ensure longer serviceable life
- High Performance bearing
- Environmental friendly high performance grease
- Powder coated Handwheels for smooth and easy operation
- Epoxy Primer Coating
- Removable Stem Nut to facilitate spindle machining thereby enabling customer stocking
- Stem Nut - Al. Bronze
- Temperature range -30°C to +120°C
- Light weight with rugged design
Optional Features
- Housing Materials: Carbon Steel, Cast Iron
- Locking arrangement
- Submersibility to IP67
- Grease High up to +260°C
- Grease Low up to -45°C
