612 Series
Manual Quarter Turn Worm Gear Operators
Clutch / Declutch

Range:

100 Nm to 35000 Nm

73.8 Ft-lbs to 25814.7 Ft-Lbf

Product Gallery

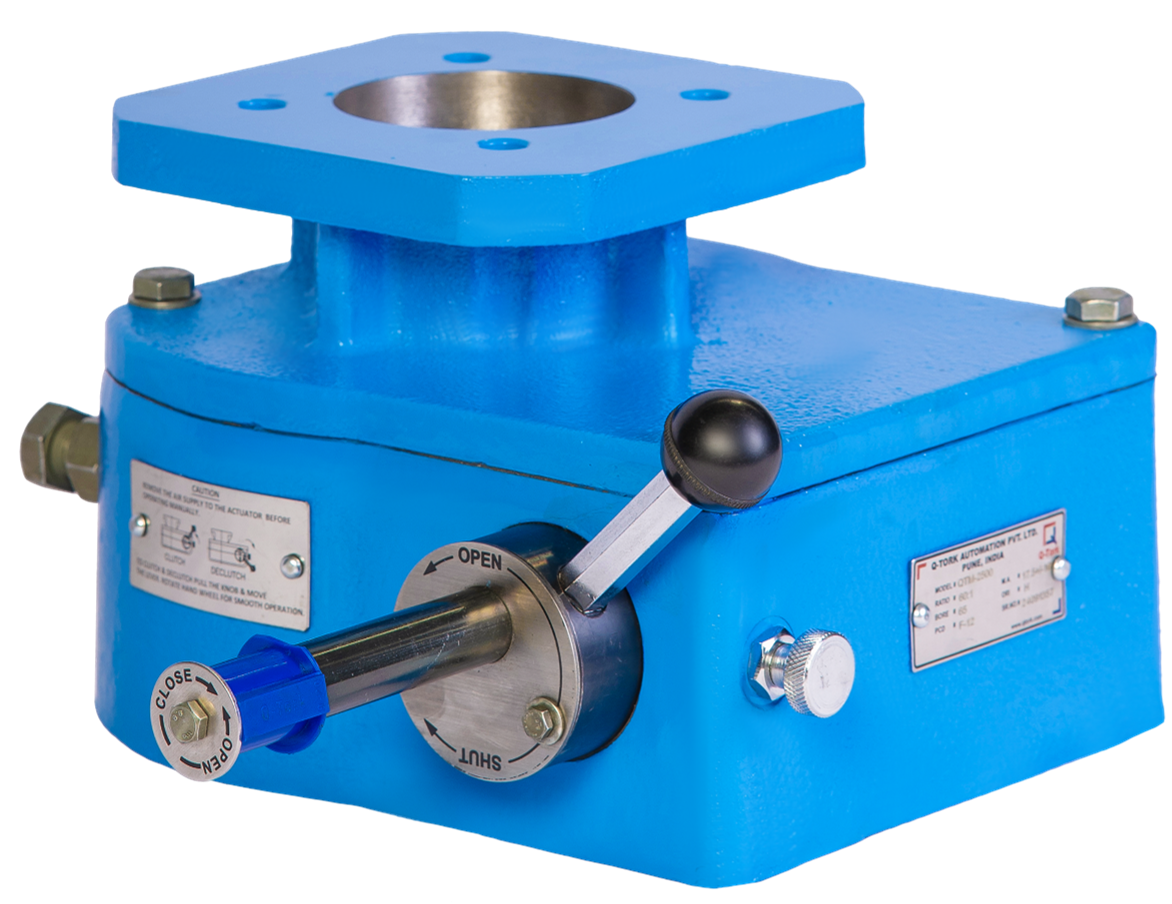

Front View
Standard 612 Series
Front View
Standard 612 Series

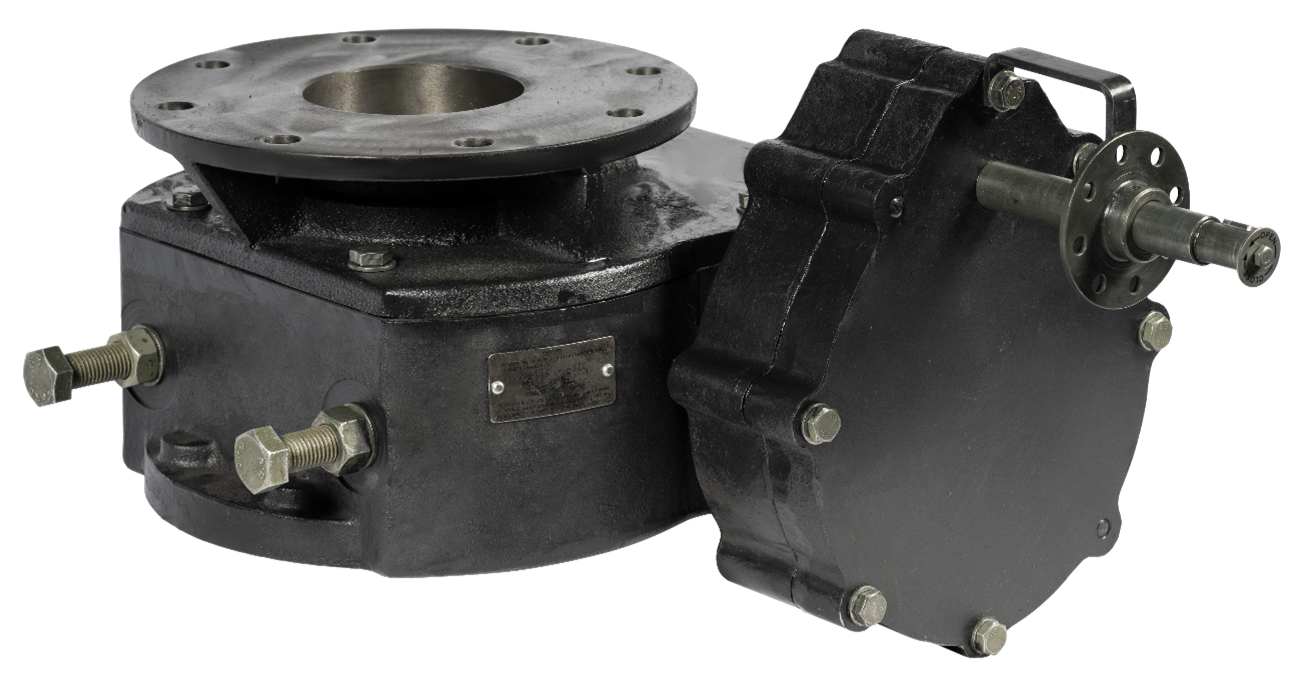

Front View
612 Series with Spur Reduction and Padlock

Description

Q-Tork 612 series Manual Override (MOR) are designed and used for manually overriding pneumatic actuators mainly for industrial application. The compact robust designed product has optimum ratio to reduce efforts during its operation

Application

612 series MOR are widely used for its reliability where their are double acting and spring return pneumatic actuators. All MOR are mounted between the valve and actuator

Key Features

  • Graded CI housing and cover
  • High performance axial bearing
  • Light weight with rugged design
  • Maintenance free
  • Temperature range -30°C to +120°C
  • Epoxy primer coated housing and cover
  • Environmental friendly high performance grease
  • Alloy steel-worm & input shaft
  • Powder coated handwheel

Optional Features

  • Housing/Cover: Carbon steel, Ductile Iron, Stainless Steel
  • Quadrant: Al. Bronze
  • Submersibility to IP-67
  • Stainless steel: shaft, handwheel and hardware
  • Lubricants in temperature variants can be provided
